Metalworking

The company ELKOPLAST CZ offers a wide portfolio of services in the field of production of precise shaped elements. We use the most modern technical equipment to achieve the best possible results.

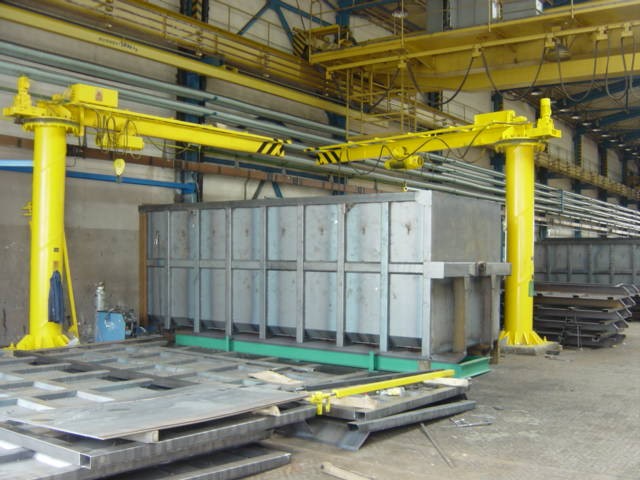

We also offer cooperation in the supply of steel products, such as welded structures, steel pallets, tanks and other custom-made products according to the supplied drawing documentation or according to the approved sample. Thanks to good technological equipment, we are able to offer more technically complex and space-consuming welds.

  • production from own material or material supplied by the customer,
  • interesting prices and short delivery times,
  • transport to the customer.

Material division

Division of precise metal burn parts

  • supplies of precise metal burn parts with CNC plasma, gas and laser cutting technology,
  • production from own material or material supplied by the customer,
  • interesting prices and short delivery times,
  • transport of finished parts and material.

Specifications of the cutting machine RUR 3000 GP

cutting width (max) 2600 mm
cutting length (max) 8100 mm
control system Burny 10 LCD
programming software CAD/CAM software Wrykrys
plasma burning up to a thickness of 12 mm
burning oxygen - gas up to a thickness of 200 mm

LVD Lynx FL3015 4kW Laser Specifications

working length 3000 mm
working width  1500 mm
control system Cadman L

Bending of material on a press brake

AD-S 40400 Press Brake Specifications

total pressing force 800 t
working length 8100 mm
depth in stands 1000 mm
control system Cybelec ModEva10S

LVD PPEB-170 Press Brake Specifications

total pressing force 170 t
working length 3000 mm
depth in stands 600 mm
control system Cybelec ModEva10S Cadman B

We also offer these CNC presse brakes:

  • AD-R 25100, length 2500 mm/ pressing force 100 tons,
  • AD-R 40175, length 4000 mm/ pressing force 175 tons,
  • AD-R 40225, length ​4000 mm/ pressing force 225 tons.
