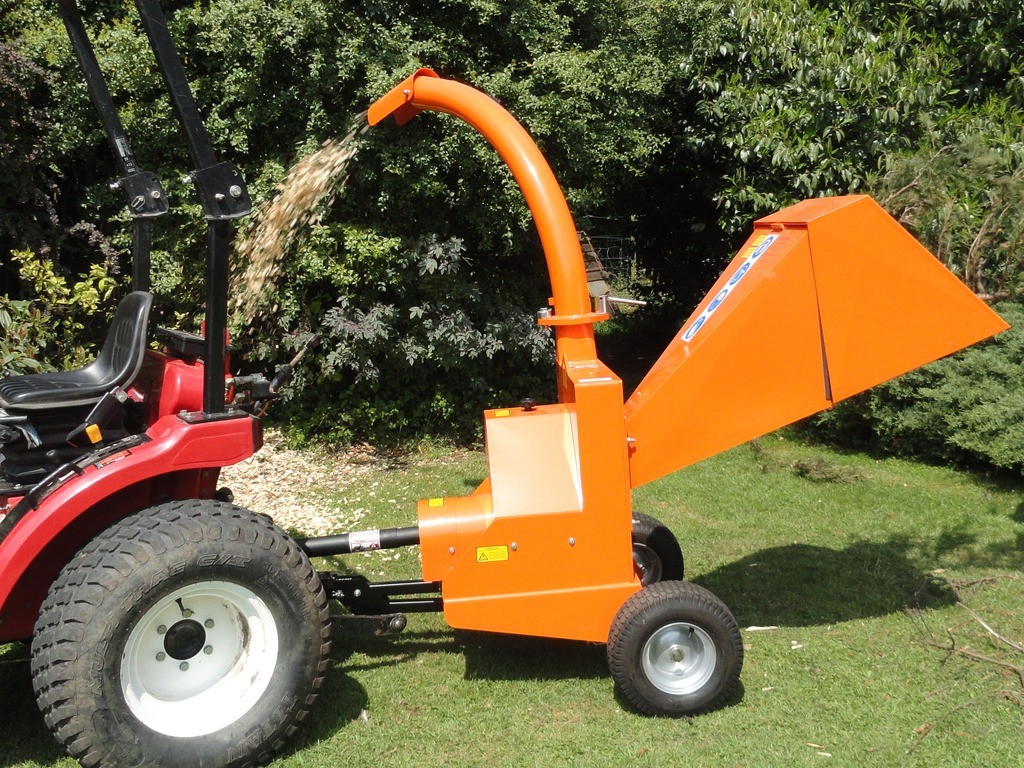

TIMBERWOLF TW PTO/100G
This is a versatile wood chipper for a council, golf course or farmer, suitable to work with any small tractor or power unit (18-40 HP).
With a low centre of gravity, easy tow chassis and good ground clearance, this machine has a positive blade feed action, large feed funnel and the ability to quickly process 75 mm to 100 mm diameter material at up to 1.5 tonnes per hour.
Main advantages:
- Max. material diameter: 100 mm,
- Towed behind a small tractor,
- 3-Point Linkage not required,
- Ideal for maintenance of larger gardens.
Popis:
- Feeding: gravitational,
- Maximum power: 1.5 t / h,
- PTO speed: 540 rpm,
- Required engine power: 25 - 60 HP,
- Knives: 2 knives, diameter 177 mm, fully hardened,
- Rotor diameter: 460 mm,
- Chassis: road, unbraked,
- Rotor speed: 2 209 rpm,
- Average chip size: 9 mm.
| Type | Length | Width | Height | Weight |
|---|---|---|---|---|
| Timberwolf TW PTO/100G | 1935 mm | 1000 mm | 2050 mm | 268 kg |
