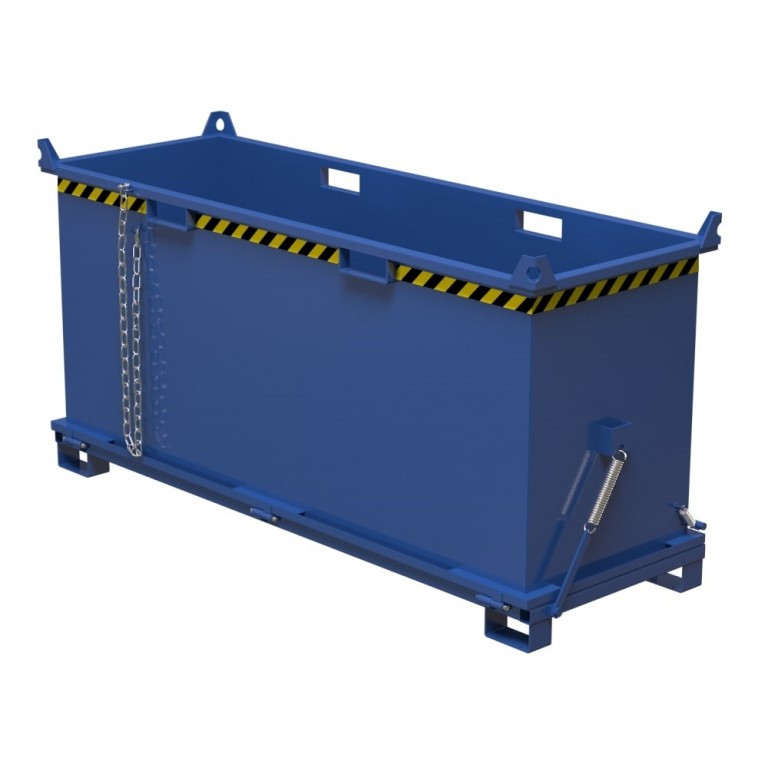

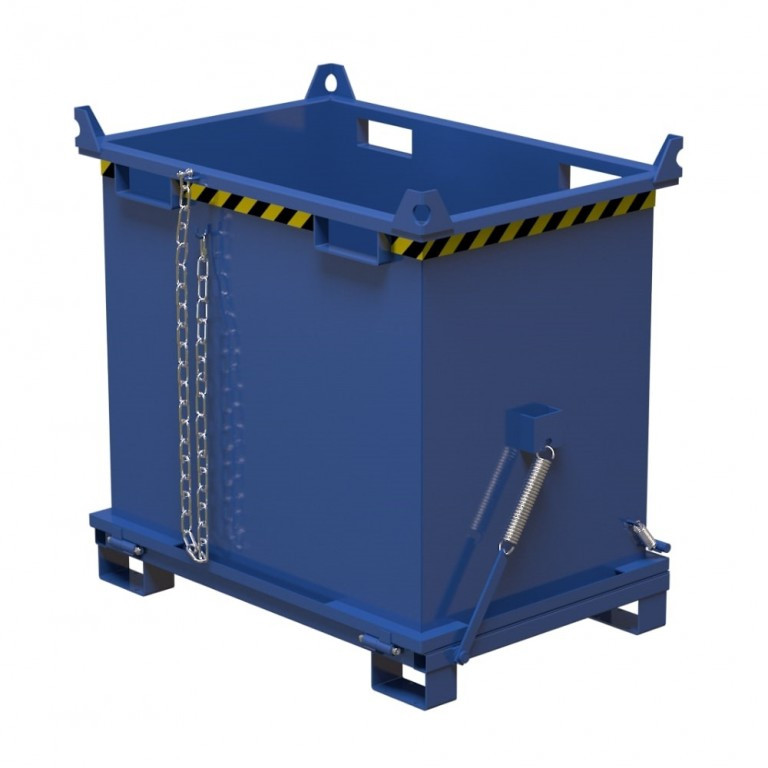

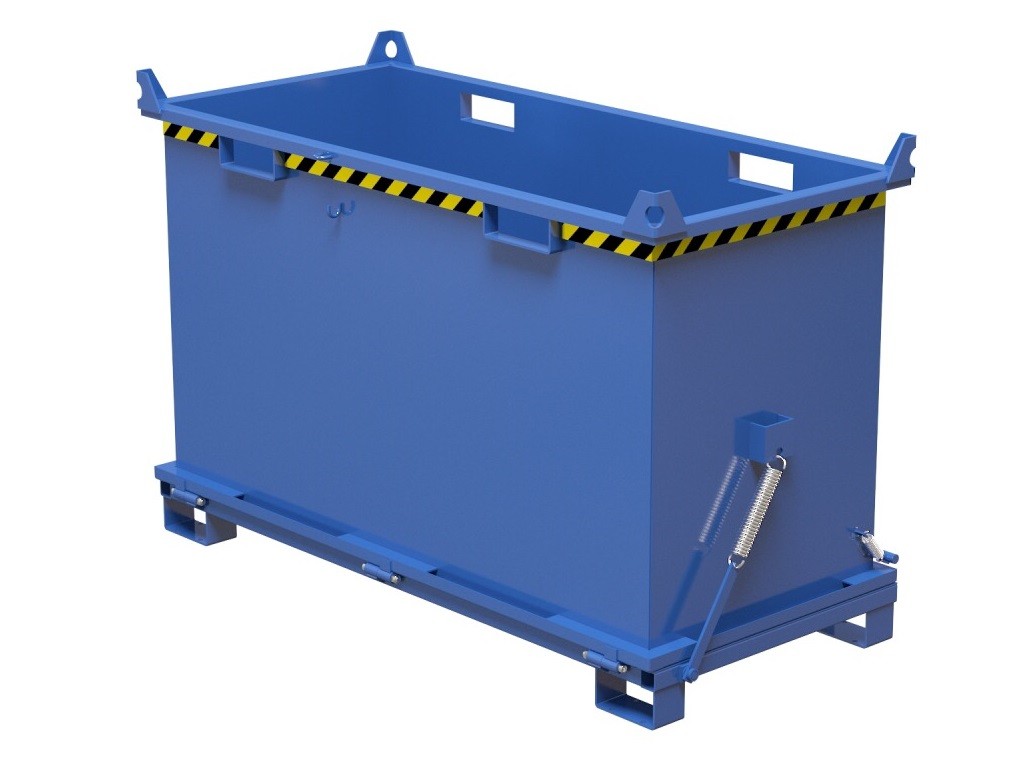

VBB 500-2000 l tilting bottom containers

Robust steel container with tilting bottom with a load capacity of up to 1500 kg, stackable.







Specifications

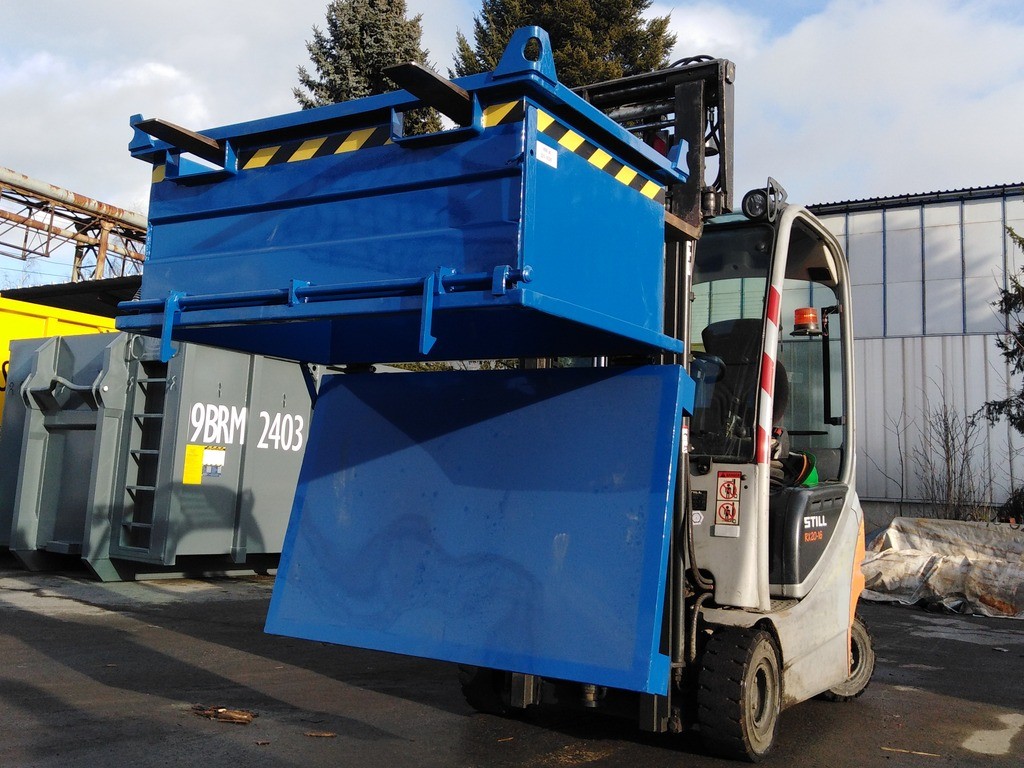

  • Smooth opening from below by means of a tension spring,
  • suitable for metals, glass, wood, rubble. Collection, storage and transport,

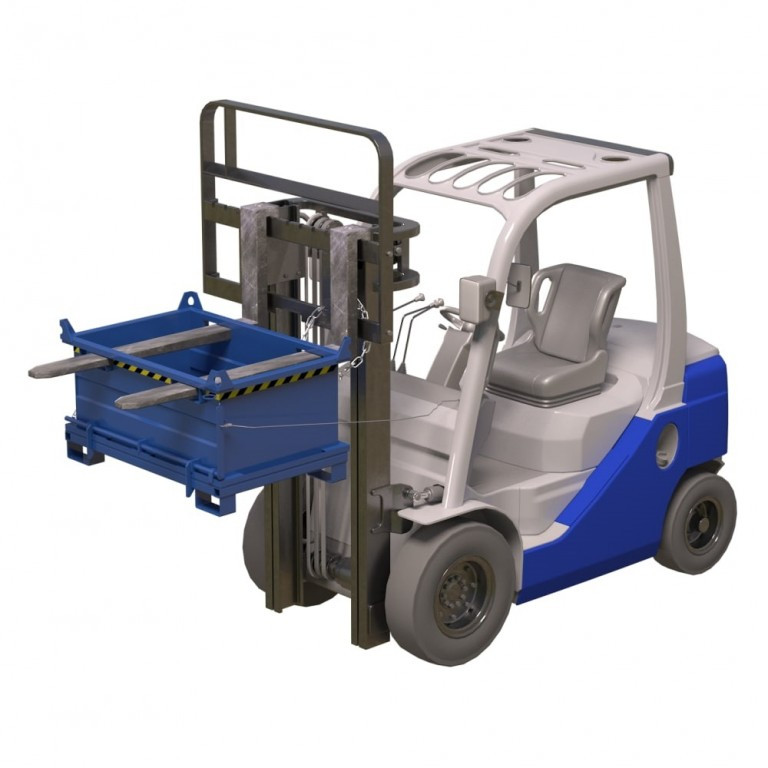

  • easy to move with a forklift, crane or pallet truck,
  • surface treatment: anti-corrosion powder paint RAL 5010,
  • possibility of delivery with 4 wheels,
  • scope of delivery: nylon cable for attachment to the container lever, allowing manual opening of the container without having to get out of the forklift + steel chain for attachment to the forklift to ensure handling of the container



Dimensions

Volume length width height  weight load capacity
500 l 1391 mm 932 mm 764 mm 136 kg 2000 kg
750 l 1338 mm 932 mm 1034 mm 143 kg 1000 kg
1000 l 1338 mm 917 mm 1294 mm 197 kg 1000 kg
1300 l 1704 mm 917 mm 1294 mm 237 kg 1200 kg
1500 l 1974 mm 917 mm 1294 mm 261 kg 1200 kg
2000 l 2574 mm 917 mm 1294 mm 324 kg 1500 kg
