Diesel oil tank FDC 7000

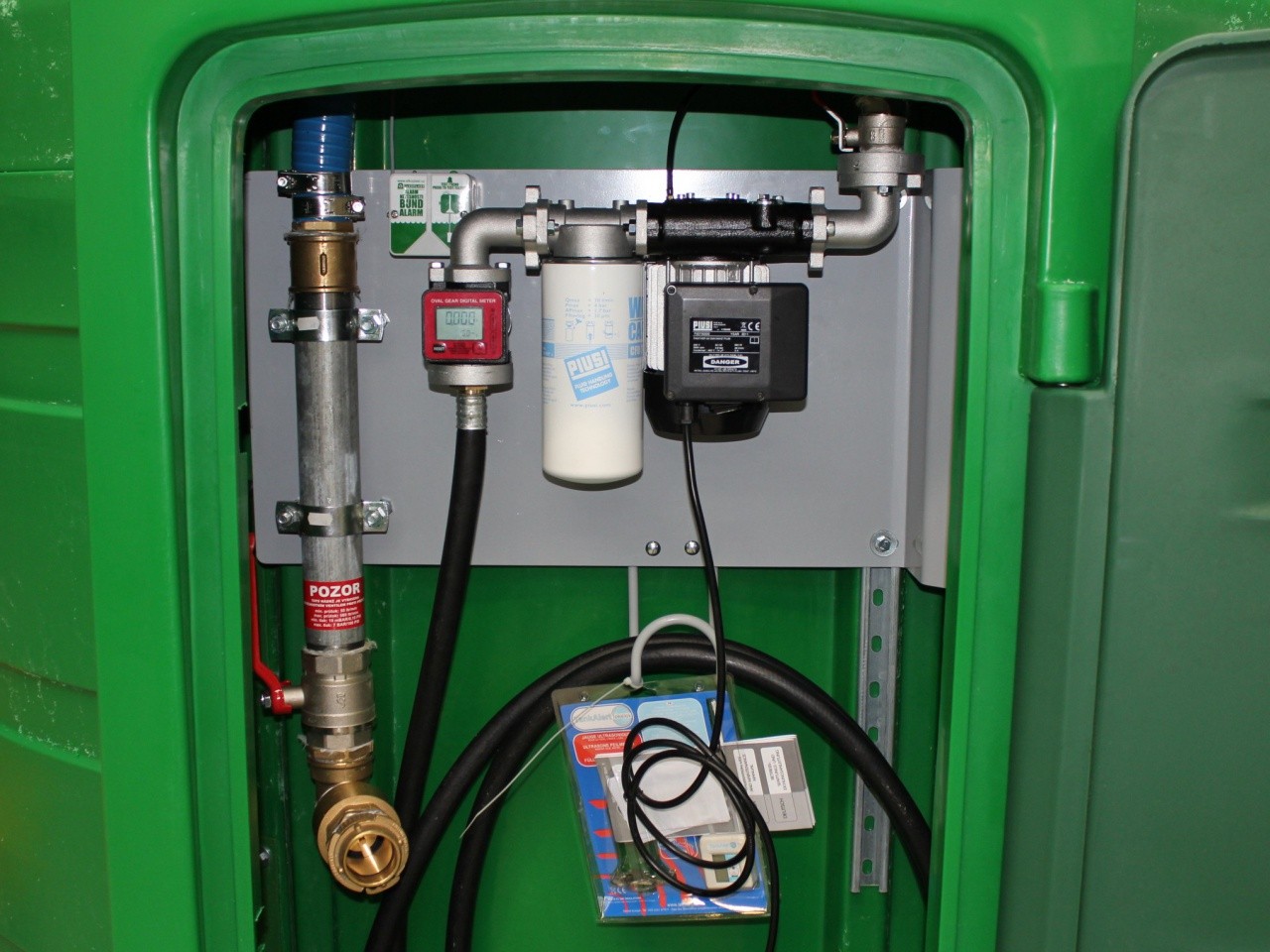

Bunded tank FDC 7000 for diesel oil storage and dispense is equipped with lockable engine room, which contains integrated dispensing equipment for easy operation, including top quality digital flowmeter 10-100 l/min with accuracy +/- 0,5% and 6 m long antistatic pressure hose. It has lower filling with a gladhand AC-2.





Standard tank equipment:

  • sliding-vane pump, rated flow 56 l/m,
  • fuel filter with water separator, 70 l/min, 30 microns,
  • remote fuel level monitoring (Apollo),
  • electronic leak detector (Hytek),
  • automatic dispensing nozzle,
  • overfill prevention valve (eliminates spills and overfills during filling from a tanker),
  • vent,
  • 2 m power cable,
  • service hole with a lid on the inner tank has 540 mm in diameter, filling hole with a lid on the inner tank has 112 mm in diameter.

Options:

  • pump 72 l/min,
  • Access 85 fuel management system,

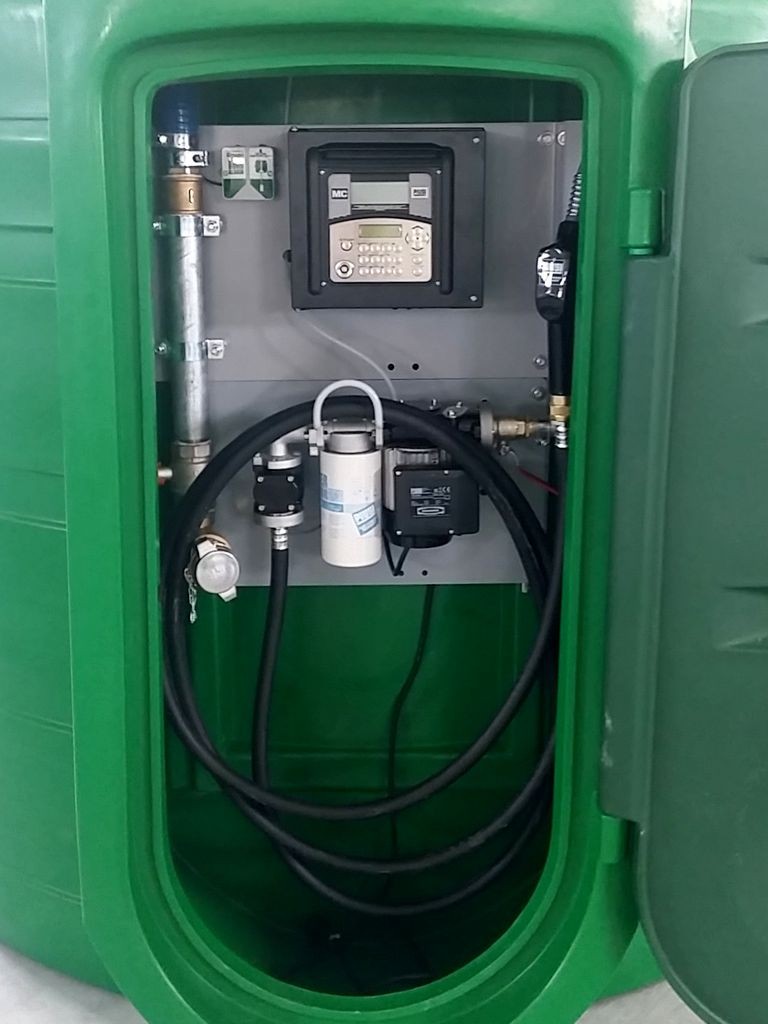

  • MC Box fuel management system,
  • Diesel oil dispense control system,
  • power dispense pack (pump 72/l/min, 6 m hose DN25) - order no. 20187-00,
  • reconfiguration into biodiesel version - order no. 20186-00.
order no. name vol. (l) power l x w x h (mm) weight (kg)
20120-08 Diesel oil tank FDC 7000 7000 230 V 2950 x 2435 x 2300 450
