Hazardous Waste Containers
ASP 600/800/1500
Certified for storage and transport of hazardous solids and bulk substances. Standard containers (UN code starting with 11A) or steel boxes (UN code starts with 4A) are suitable for the transport of substances that require packing group I./X, II./Y or III./Z, according to ADR / RID / IMDG / RTDG regulations.
ASP 600/800/1500 containers are certified according to Chapter 6.5 of the ADR Agreement as a large container for bulk substances (IBC, 11A) or steel boxes (4A) of solid or pasty nature. Filling and emptying is allowed by gravity (ie not under pressure).
Packaging requirements for a specific hazardous substance are not part of the packaging certification. In all cases, it is necessary to follow the relevant ADR guideline for the packaging of a specific dangerous substance. It is up to the user to ensure these requirements.
Specifications
- comply with DIN 30741, part I, UN certified,
- handling by forklift or crane,
- document pocket,
- hot-dip galvanized.
Cover
- equipped with a handle,
- lockable in the open position 81 degrees and automatic locking when open 270 degrees,
- 2 lid locks (4 for version ASP 1500 and ASP 800 4AX),
- lid lightening springs,
- lid thickness 2 mm (3 mm for ASP 800 4AX version),
- side thickness 2 mm,
- bottom thickness 2.5 mm.
ASP 600 LTH - for lithium batteries
The LTH version (UN code starts with 4A) is intended for batteries including lithium and these are suitable for the transport of substances in packing group II./Y or III./Z, according to ADR / RID / IMDG / RTDG regulations.
The ASP 600 LTH container is certified according to chapter 6.1 of the ADR Agreement as a steel box (4A). This type of packaging is suitable for all groups of lithium batteries and cells mentioned in 4.1.4.1 of the ADR (Packaging Instructions).
The LTH version can also be used for packaging other dangerous goods than lithium batteries. In all cases, however, it is necessary to follow the relevant ADR guideline for the packaging of a specific dangerous substance.
For lithium batteries, according to 4.1.4.1 of the ADR, the packaging is certified for:
- lithium batteries transported for disposal or recycling,
- new lithium batteries produced in small series (up to 100 pieces) or prototypes transported for testing,
- lithium batteries damaged or defective, including those contained in equipment, other than those prone to rapid decomposition, hazardous reactions, fire or hazardous heat generation, or the release of toxic, corrosive, or flammable vapors;
- other lithium batteries (eg new lithium batteries that are transported throughout the supply chain).
Specifications
- comply with DIN 30741, part I, UN certified,
- handling by forklift or crane,
- document pocket,
- hot-dip galvanized.
Cover
- equipped with a handle,
- lockable in the open position 81 degrees and automatic locking when open 270 degrees,
- 4 lid locks,
- lid lightening springs,
- lid thickness 3 mm,
- side thickness 2 mm,
- bottom thickness 2.5 mm.
| Type | length | width | height | volume | weight | brutto |
|---|---|---|---|---|---|---|
| ASP 600 | 1200 mm | 1000 mm | 1060 mm | 600 l | 180 kg | 1450 kg |
| ASP 800 | 1200 mm | 1000 mm | 1250 mm | 800 l | 190 kg | 1450 kg |
| ASP 800 4AX | 1200 mm | 1000 mm | 1250 mm | 800 l | 225 kg | 625 kg |
| ASP 1500 | 1442 mm | 1199 mm | 1160 mm | 1500 l | 320 kg | 1500 kg |
| ASP 600 LTH | 1200 mm | 1000 mm | 1060 mm | 600 l | 193 kg | 593 kg |
For the ASP 600/800/1500 type, ADR prescribes periodic inspections after 2.5 years from the date of manufacture. The inspection will extend the validity of the UN code by 2.5 years. For type ASP 600 LTH and ASP 800 4AX these inspections are not required.

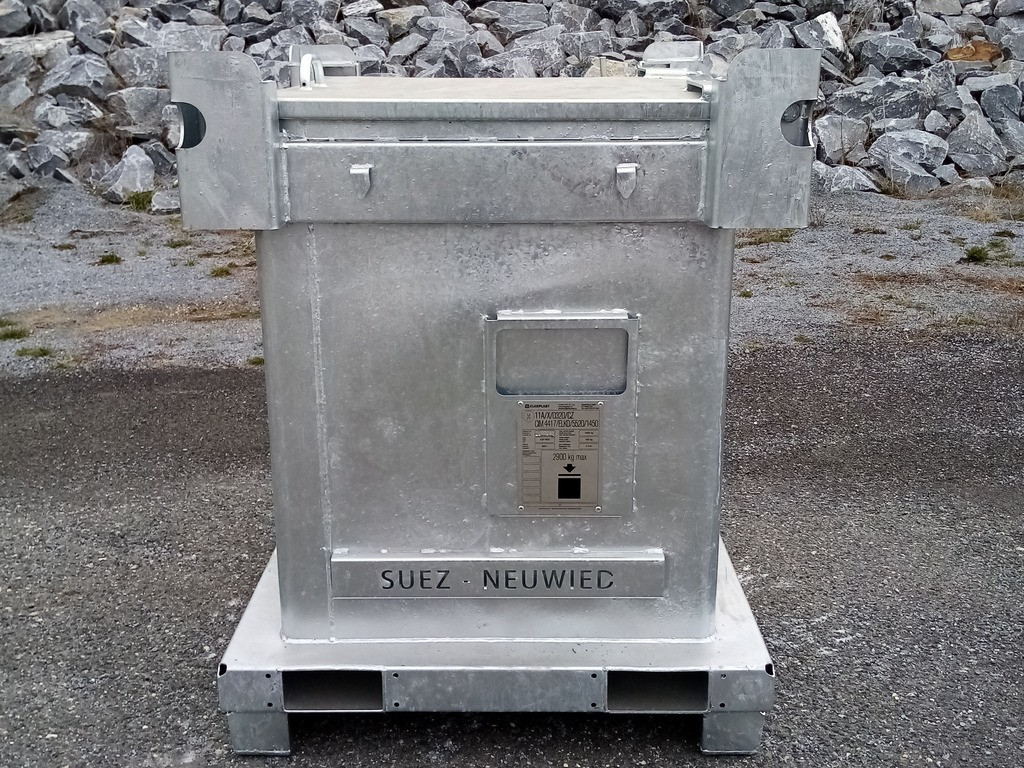

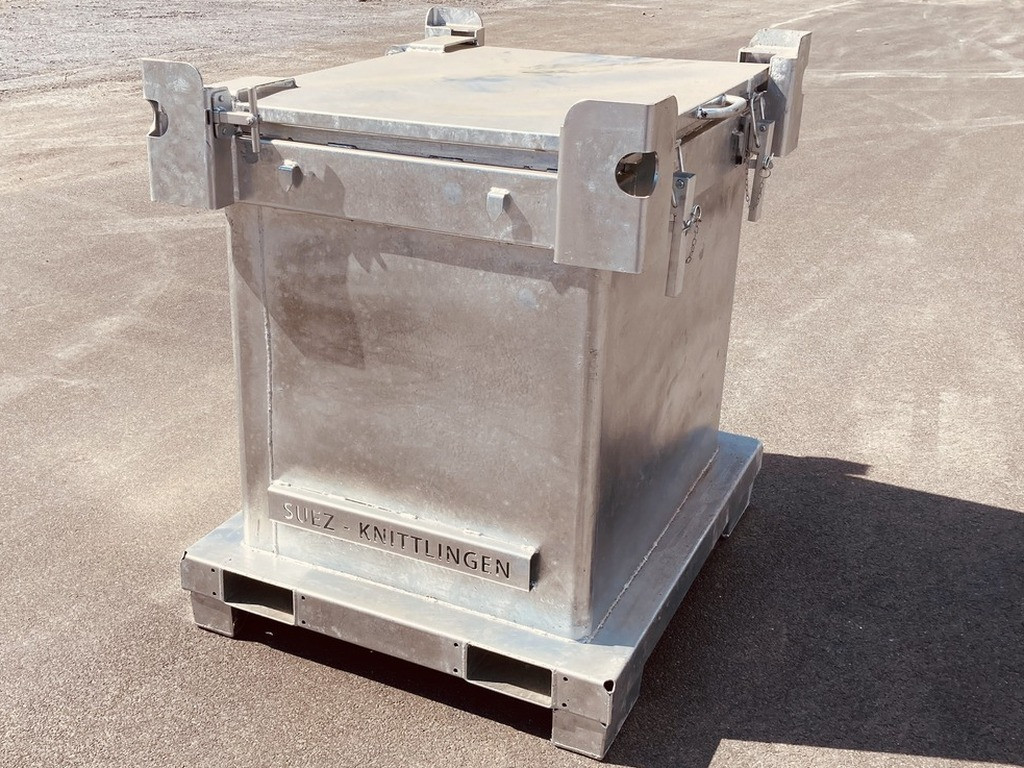

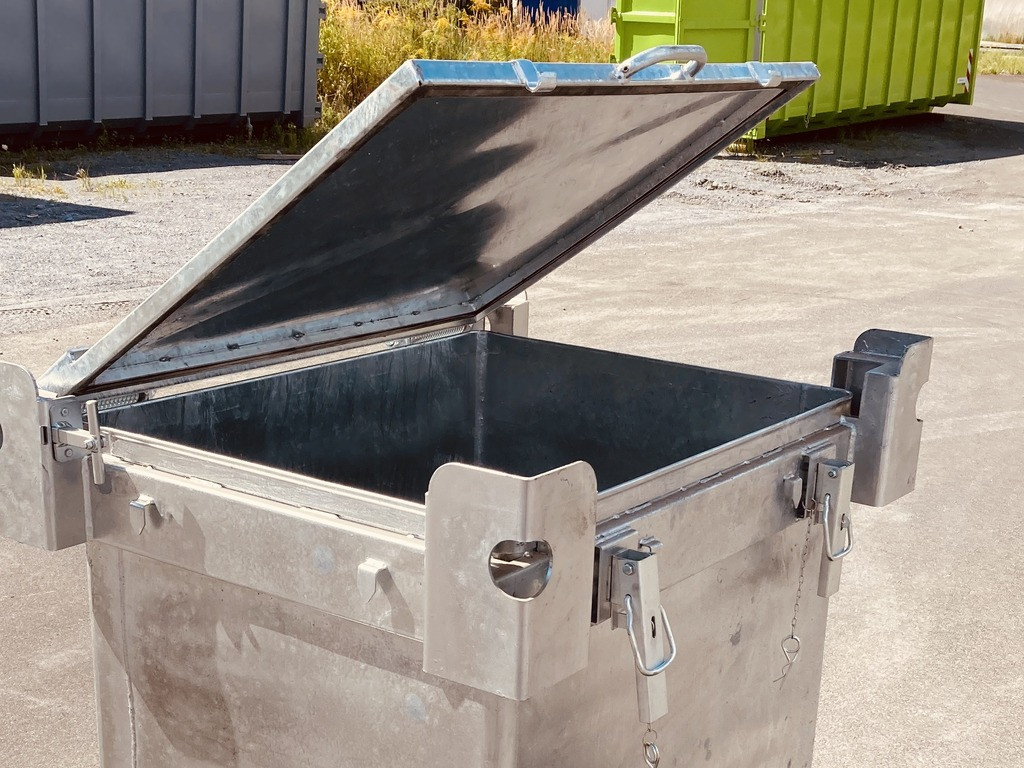

Photogallery
