Railway Transport Version (ABR-ACTS)

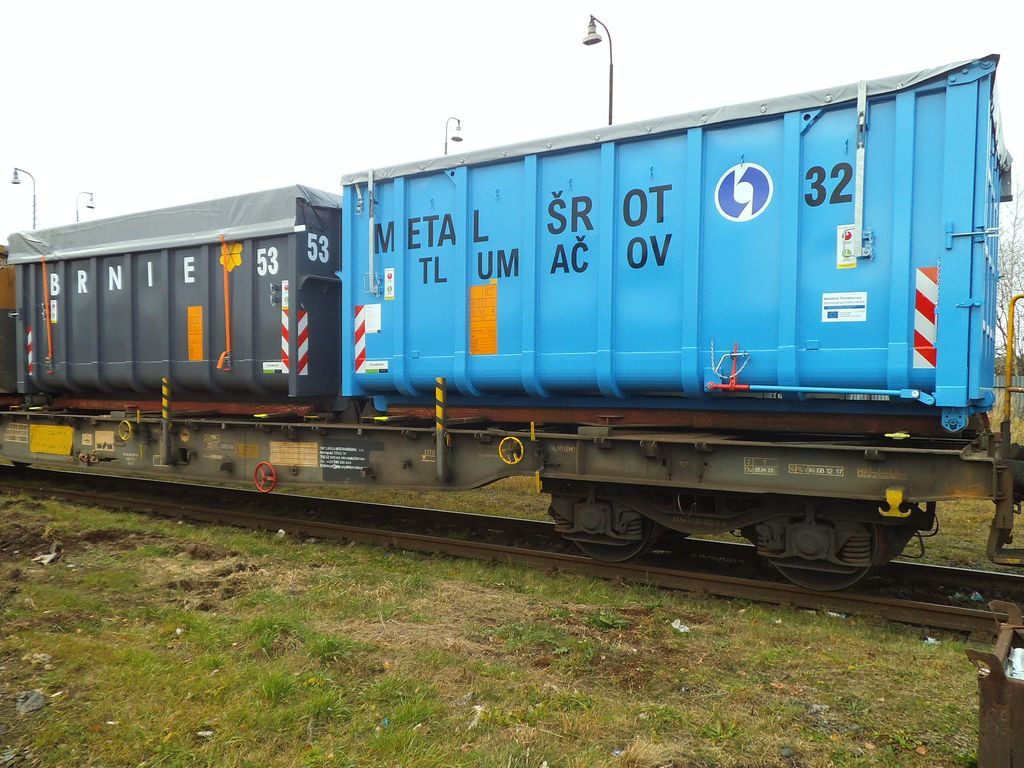

ACTS (short for German Abroll-Container-Transport-System) is a transport system for combined road-rail transport. Within this system, special containers are used, which are transported on special railway wagons or on automobile carriers. The containers are manufactured according to strict technical standards and tested in specialized testing laboratories directly on the railway. ACTS containers are transported by rail on four-axle platform wagons, which allow the simultaneous transport of up to three containers. The containers themselves are then placed on rotating carriers.



Specification

  • design 5/3 S355
  • hook NS 1570/50
  • floor x walls connection R200
  • top hem tube 89x6 S355
  • side reinforcement spacing 750 mm
  • sidewall reinforcement profile U 120x60x3 S355
  • floor reinforcement spacing 750 mm
  • floor reinforcement profile U 120x60x4
  • rear beam UPN 180
  • rolls 2 pcs length 200 mm tube 159x8
